Using Simulink

The Model Browser

The Model Browser enables you to

• Navigate a model hierarchically
• Open systems in a model
• Determine the blocks contained in a model

The browser operates differently on Microsoft Windows and UNIX platforms.

Using the Model Browser on Windows

To display the Model Browser, select Model Browser from the Simulink View menu.

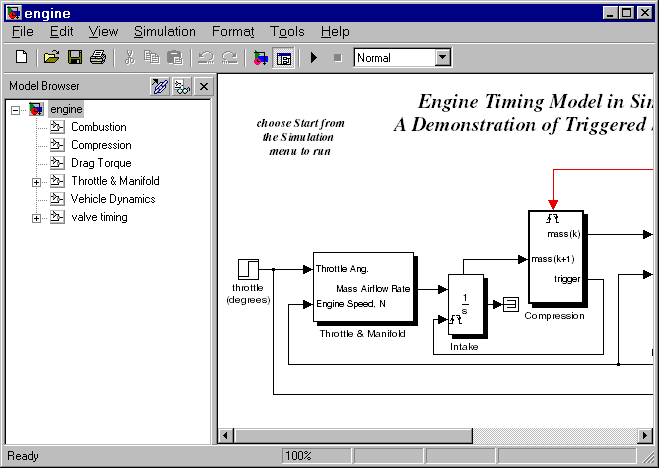

The model window splits into two panes. The left pane displays the browser, a tree-structured view of the block diagram displayed in the right pane.

Note    The Browser initially visible preference causes Simulink to open models by default in the Model Browser. To set this preference, select Preferences from the Simulink File menu.

The top entry in the tree view corresponds to your model. A button next to the model name allows you to expand or contract the tree view. The expanded view shows the model's subsystems. A button next to a subsystem indicates that the subsystem itself contains subsystems. You can use the button to list the subsystem's children. To view the block diagram of the model or any subsystem displayed in the tree view, select the subsystem. You can use either the mouse or the keyboard to navigate quickly to any subsystem in the tree view.

Navigating with the Mouse

Click any subsystem visible in the tree view to select it. Click the + button next to any subsystem to list the subsystems that it contains. Click the button again to contract the entry.

Navigating with the Keyboard

Use the up/down arrows to move the current selection up or down the tree view. Use the left/right arrow or +/- keys on your numeric keypad to expand an entry that contains subsystems.

Showing Library Links

The Model Browser can include or omit library links from the tree view of a model. Use the Simulink Preferences dialog box to specify whether to display library links by default. To toggle display of library links, select Show library links from the Model browser options submenu of the Simulink View menu.

Showing Masked Subsystems

The Model Browser can include or omit masked subsystems from the tree view. If the tree view includes masked subsystems, selecting a masked subsystem in the tree view displays its block diagram in the diagram view. Use the Simulink Preferences dialog box to specify whether to display masked subsystems by default. To toggle display of masked subsystems, select Look under masks from the Model browser options submenu of the Simulink View menu.

Finding Objects

Using the Model Browser on UNIX
