warp

Display an image as a texture-mapped surface

Syntax

• warp(X,map)
  warp(I,n)
  warp(BW)
  warp(RGB)
  warp(z,...)
  warp(x,y,z,...)
  h = warp(...)


Description

warp(X,map) displays the indexed image X with colormap map as a texture map on a simple rectangular surface.

warp(I,n) displays the intensity image I with gray scale colormap of length n as a texture map on a simple rectangular surface.

warp(BW) displays the binary image BW as a texture map on a simple rectangular surface.

warp(RGB) displays the RGB image in the array RGB as a texture map on a simple rectangular surface.

warp(z,...) displays the image on the surface z.

warp(x,y,z...) displays the image on the surface (x,y,z).

h = warp(...) returns a handle to a texture mapped surface.

Class Support

The input image can be of class logical, uint8, uint16, or double.

Remarks

Texture-mapped surfaces generally render more slowly than images.

Example

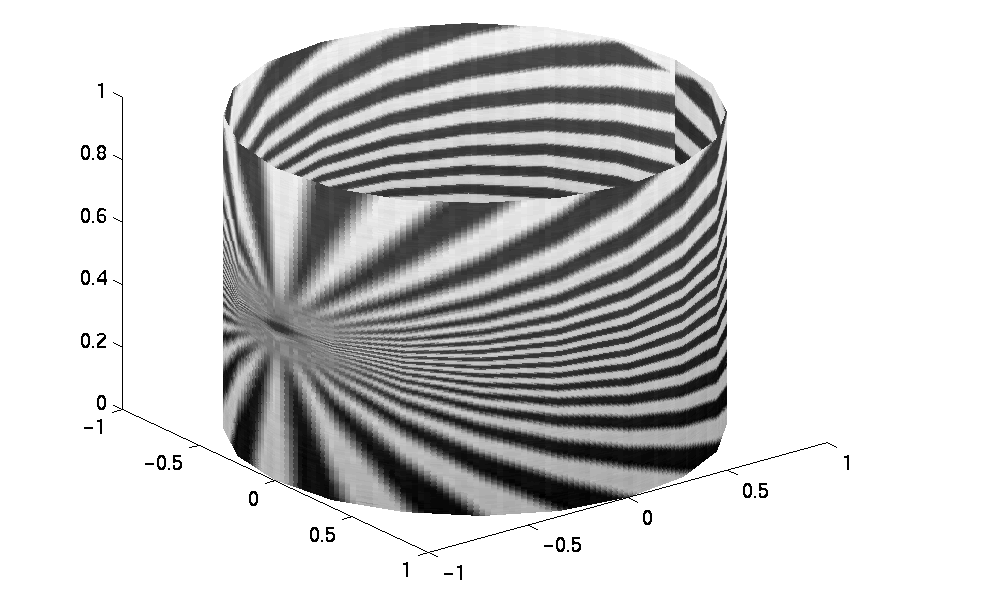

This example texture maps an image of a test pattern onto a cylinder.

• [x,y,z] = cylinder;
  I = imread('testpat1.tif');
  warp(x,y,z,I);




See Also

imshow

image, imagesc, surf in the MATLAB Function Reference
