Filter Real Zero
Implement a discrete-time filter that has a real zero and no pole
Library
Filters
Description

The Filter Real Zero block implements a discrete-time filter that has a real zero and effectively has no pole.

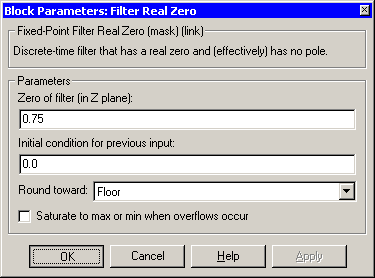

Parameters and Dialog Box

- Zero of filter (in Z plane)
- Set the zero of the filter.
- Initial condition for previous input
- Set the initial condition for the previous input.
- Round toward
- Rounding mode for the fixed-point output.
- Saturate to max or min when overflows occur
- If selected, fixed-point overflows saturate.
Characteristics
Input Ports
|
Any data type supported by the blockset--it must be a scalar
|
Output Port
|
Any data type supported by the blockset
|
Direct Feedthrough
|
Yes
|
Scalar Expansion
|
Of initial conditions
|
Vectorized
|
No
|
See Also
FIR
