Tool and Viewer Reference

Right-Click Menus for
Response Plots

All the response plots that the Control System Toolbox creates have right-click menus available. The plots include the following:

• bode
• bodemag
• impulse
• initial
• nichols
• nyquist
• pzmap
• sigma
• step

Note    Click on any of the items in the right-click menus, shown below, to get help on the feature.

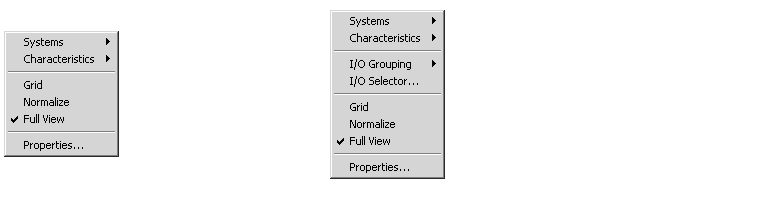

Right-Click Menus for SISO and MIMO/LTI Array Models.

You can do the following using the right-click menus for response plots:

• Select and deselect imported systems
• Change plot characteristics
• Add and remove grid lines
• Zoom in and out of selected plot regions
• Open the Property Editor for the selected plot
• In the MIMO/LTI array case:
• regroup the plots
• Select subsets of I/O pairs

Status Panel

Right-Click Menus for SISO Systems
