Customization |
 |
Style Page
Note
Click on the page tabs below to get help on LTI Viewer Preference editor pages.
|

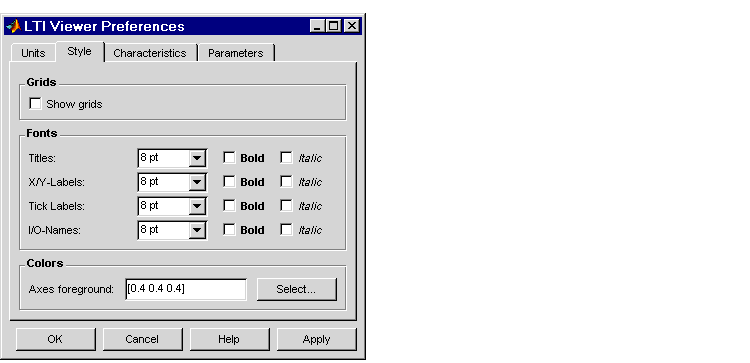

Use the Style page to toggle grid visibility and set font preferences and axes foreground colors for all plots in the LTI Viewer. This figure shows the Style page.
You have the following choices:
- Grid -- Activate grids for all plots in the LTI Viewer
- Fonts -- Set the font size, weight (bold), and angle (italic)
- Colors -- Specify the color vector to use for the axes foreground, which includes the X-Y axes, grid lines, and tick labels. Use a three-element vector to represent red, green, and blue (RGB) values. Vector element values can range from 0 to 1.
- If you do not want to specify the RGB values numerically, press the Select button to open the Select Colors window. See Select colors for more information.
