Style Page
Note
Click on the page tabs below to get help on pages in the Control System Toolbox Preferences editor.
|

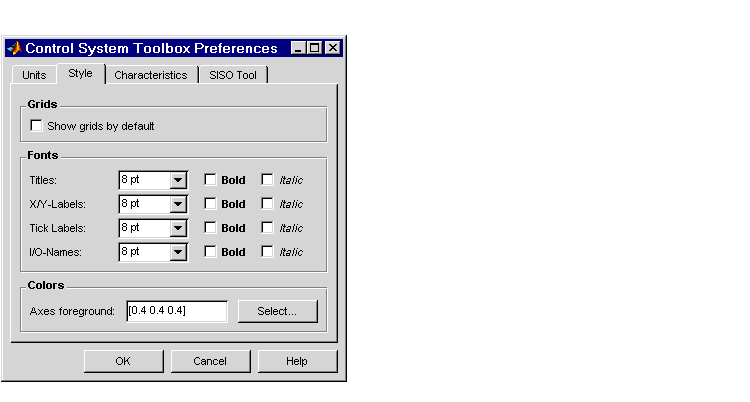

Use the Style page to toggle grid visibility and set font preferences and axes foreground colors for all plots you create using the Control System Toolbox. This figure shows the Style page.
You have the following choices:
- Grid -- Activate grids by default in new plots
- Font preferences -- Set the font size, weight (bold), and angle (italic)
- Colors -- Specify the color vector to use for the axes foreground, which includes the X-Y axes, grid lines, and tick labels. Use a three-element vector to represent red, green, and blue (RGB) values. Vector element values can range from 0 to 1.
- If you do not want to specify RGB values numerically, press the Select button to open the Select Colors window. See Select colors for more information.
