Limits Page

Note    Click on the page tabs below to get help on pages in the Root Locus Property Editor.

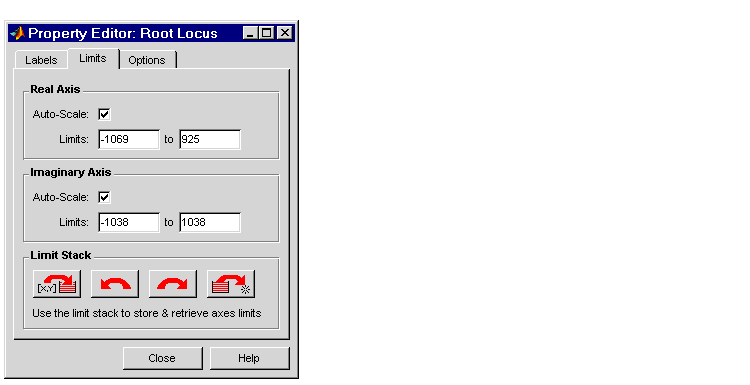

The SISO Design Tool specifies default values for the real and imaginary axes ranges to make sure that all the poles and zeros in your model appear in the root locus plot. Use the Limits page, shown below, to override the default settings.

To change the limits, specify the new limits in the real and imaginary axes Limits fields. The Auto-Scale checkbox automatically deactivates once you click in a different field. Your root locus diagram updates immediately. If you want to reapply the default limits, recheck the Auto-Scale checkboxes.

The Limit Stack panel provides support for storing and retrieving custom limit specifications. There are four buttons available:

-- Add the current limits to the stack

-- Retrieve the previous stack entry

-- Retrieve the next stack entry

-- Remove the current limits from the stack

Using these buttons, you can store and retrieve any number of saved custom axes limits.
