Changing Plot Type
You can view other plots using the right-click menus in the LTI Viewer. For example, if you want to see the open loop Bode plots for the DC motor model, select Plot Type and then Bode from the right-click menu.

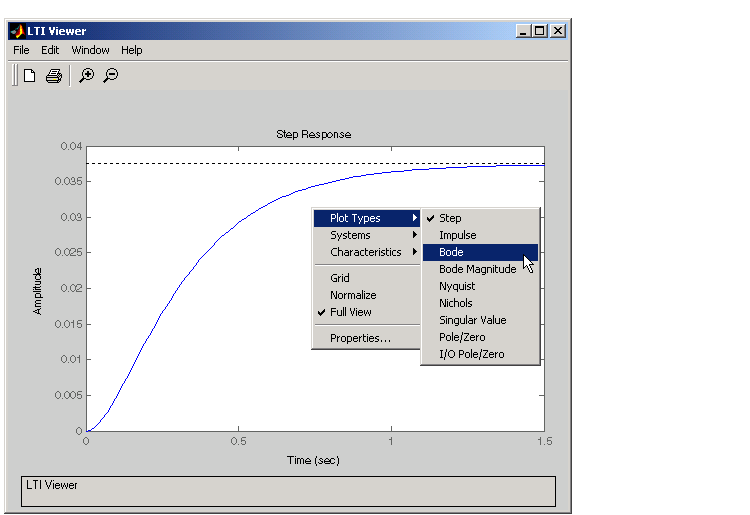

Figure 3-7: Changing the Step Response to a Bode Plot
Selecting Bode changes the step response to a Bode plot for the DC motor model.

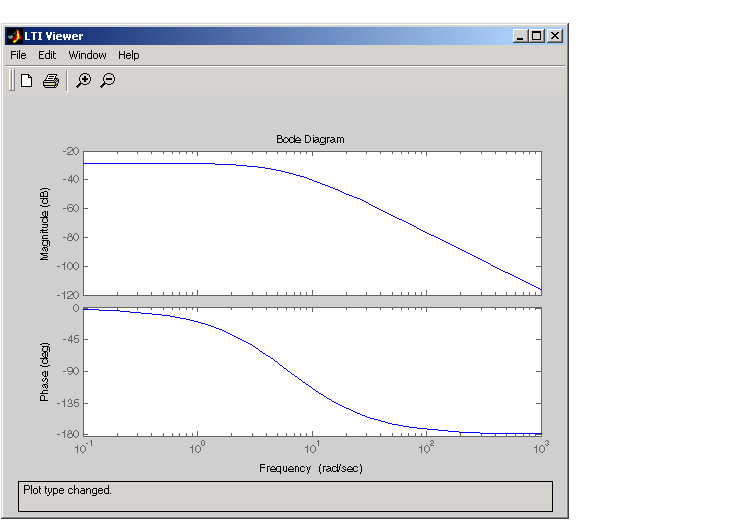

Figure 3-8: Bode Plot for the DC Motor Model
