wpsplt

Split (decompose) wavelet packet

Syntax

• T = wpsplt(T,N)
  [T,cA,cD] = wpsplt(T,N)
  [T,cA,cH,cV,cD] = wpsplt(T,N)


Description

wpsplt is a one- or two-dimensional wavelet packet analysis function.

wpsplt updates the wavelet packet tree after the decomposition of a node.

T = wpsplt(T,N) returns the modified wavelet packet tree T corresponding to the decomposition of the node N.

For a one-dimensional decomposition,

[T,cA,cD] = wpsplt(T,N) with cA = approximation and cD = detail of node N.

For a two-dimensional decomposition,

[T,cA,cH,cV,cD] = wpsplt(T,N) with cA = approximation and cH,cV,c = horizontal, vertical and diagonal details of node N.

Examples

• % The current extension mode is zero-padding (see dwtmode).

  % Load signal.
  load noisdopp;
  x = noisdopp;

  % Decompose x at depth 3 with db1 wavelet packets.
  wpt = wpdec(x,3,'db1');

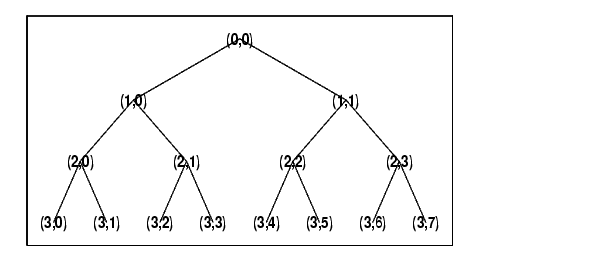

  % Plot wavelet packet tree wpt.
  plot(wpt)


  % Decompose packet (3,0).
  wpt = wpsplt(wpt,[3 0]);
  % or equivalently wpsplt(wpt,7).

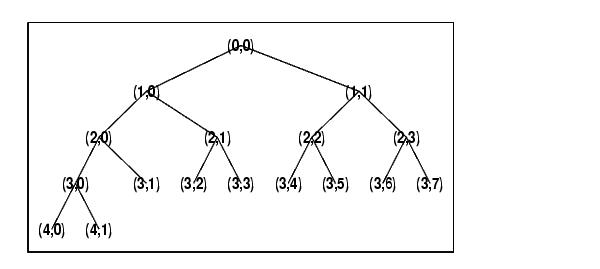

  % Plot wavelet packet tree wpt.
  plot(wpt)




See Also
wavedec, wavedec2, wpdec, wpdec2, wpjoin
