wprcoef

Reconstruct wavelet packet coefficients

Syntax

• X = wprcoef(T,N)


Description

wprcoef is a one- or two-dimensional wavelet packet analysis function.

X = wprcoef(T,N) computes reconstructed coefficients of the node N of the wavelet packet tree T.

X = wprcoef(T) is equivalent to X = wprcoef(T,0).

Examples

• % The current extension mode is zero-padding (see dwtmode).

  % Load signal.
  load noisdopp; x = noisdopp;

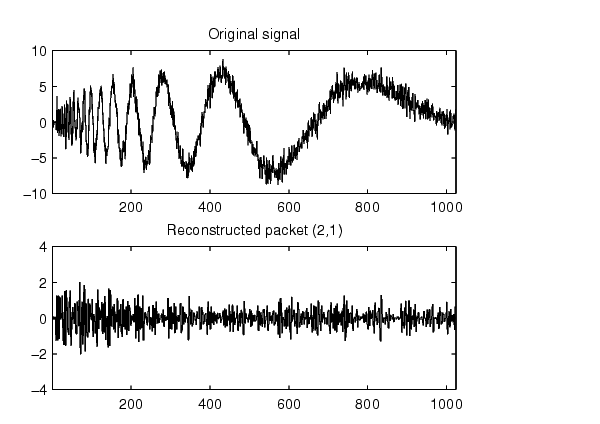

  figure(1); subplot(211);
  plot(x); title('Original signal');

  % Decompose x at depth 3 with db1 wavelet packets
  % using Shannon entropy.
  t = wpdec(x,3,'db1','shannon');

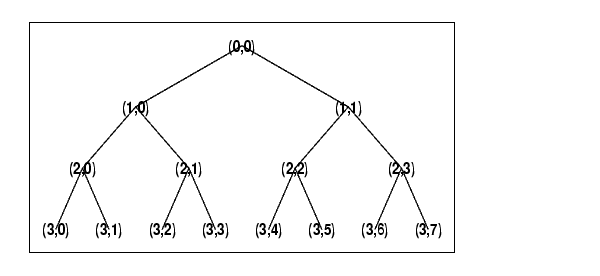

  % Plot wavelet packet tree.
  plot(t)



  % Reconstruct packet (2,1).
  rcfs = wprcoef(t,[2 1]);

  figure(1); subplot(212);
  plot(rcfs); title('Reconstructed packet (2,1)');




See Also
wpdec, wpdec2, wprec, wprec2
