Wavelet Toolbox

nodesplt

Split (decompose) node

Syntax

• T = nodesplt(T,N)


Description

nodesplt is a tree-management utility.

T = nodesplt(T,N) returns the modified tree T corresponding to the decomposition of the node N.

The nodes are numbered from left to right and from top to bottom. The root index is 0.

Examples

• % Create binary tree (tree of order 2) of depth 3.
  t = ntree(2,3);

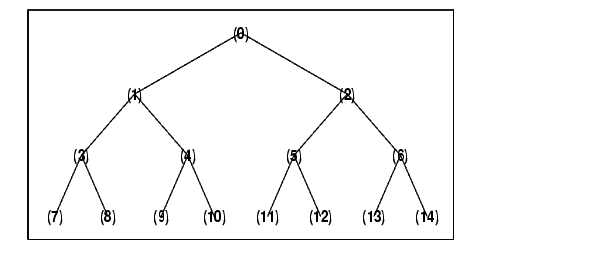

  % Plot tree t.
  plot(t)

  % Change Node Label from Depth_Position to Index
  % (see the plot function).


  % Split node of index 10.
  t = nodesplt(t,10);

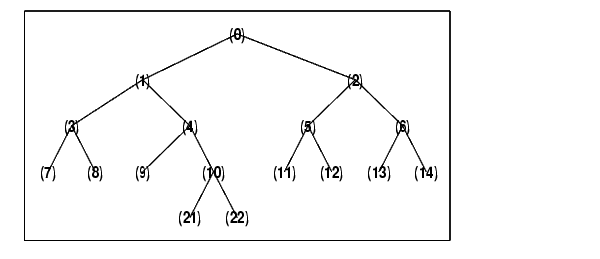

  % Plot new tree t.
  plot(t)
  % Change Node Label from Depth_Position to Index
  % (see the plot function).




See Also
nodejoin

nodepar

noleaves
