Wavelet Toolbox

nodeasc

Node ascendants

Syntax

• A = nodeasc(T,N)
  A = nodeasc(T,N,'deppos')


Description

nodeasc is a tree-management utility.

A = nodeasc(T,N) returns the indices of all the ascendants of the node N in the tree T where N can be the index node or the depth and position of the node. A is a column vector with A(1) = index of node N.

A = nodeasc(T,N,'deppos') is a matrix, which contains the depths and positions of all ascendants. A(i,1) is the depth of i-th ascendant and A(i,2) is the position of i-th ascendant.

The nodes are numbered from left to right and from top to bottom. The root index is 0.

Examples

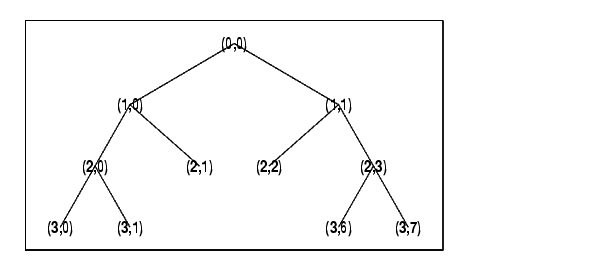

• % Create binary tree of depth 3.
  t = ntree(2,3);
  t = nodejoin(t,5);
  t = nodejoin(t,4);
  plot(t)

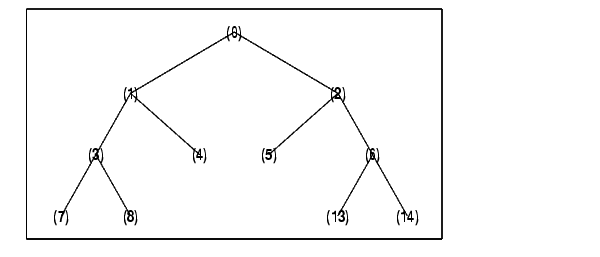

  % Change Node Label from Depth_Position to Index
  % (see the plot function).


  nodeasc(t,[2 2])
  ans =
      5
      2
      0

  nodeasc(t,[2 2],'deppos')
  ans =
      2     2
      1     1
      0     0


See Also
nodedesc, nodepar, wtreemgr
