Other Real Wavelets
Some other real wavelets are available in the toolbox.
Reverse Biorthogonal Wavelet Pairs: rbioNr.Nd
This family is obtained from the biorthogonal wavelet pairs previously described.
You can obtain a survey of the main properties of this family by typing waveinfo('rbio') from the MATLAB command line.

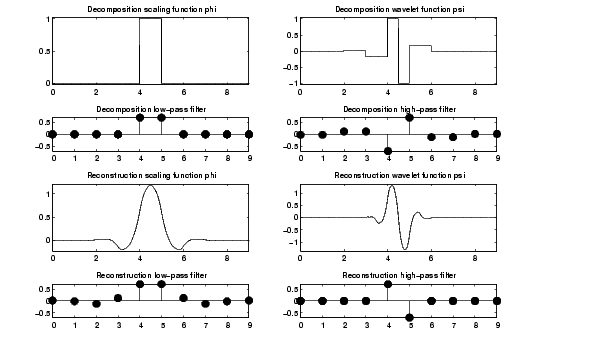

Figure 6-19: Reverse Biorthogonal Wavelet rbio1.5
Gaussian Derivatives Family: gaus
This family is built starting from the Gaussian function
by taking the
derivative of f.
The integer
is the parameter of this family and in the previous formula,
is such that
You can obtain a survey of the main properties of this family by typing waveinfo('gaus') from the MATLAB command line.

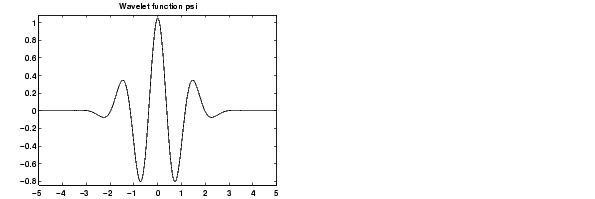

Figure 6-20: Gaussian Derivative Wavelet gaus8
FIR Based Approximation of the Meyer Wavelet: dmey
This wavelet is a FIR based approximation of the Meyer wavelet, allowing fast wavelet coefficients calculation using DWT.
You can obtain a survey of the main properties of this wavelet by typing waveinfo('dmey') from the MATLAB command line.

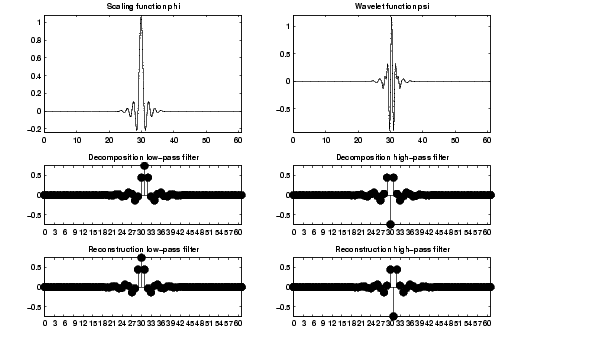

Figure 6-21: The FIR Based Approximation of the Meyer Wavelet
| | Morlet Wavelet: morl | Complex Wavelets | |
where
is the
derivative of f.
