Example 4: Colored AR(3) Noise

Analyzing wavelet: db3

Decomposition levels: 5

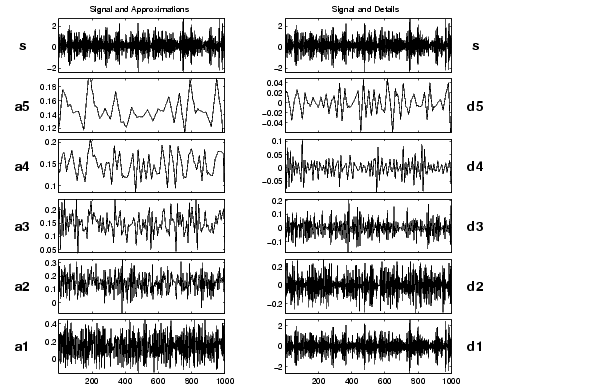

This figure can be examined in view of Example 3: Uniform White Noise, since we are confronted here with a non-white noise whose spectrum is mainly at the higher frequencies. Therefore, it is found primarily in D1, which contains the major portion of the signal. In this situation, which is commonly encountered in practice, the effects of the noise on the analysis decrease considerably more rapidly than in the case of white noise. In A3, A4, and A5, we encounter the same scheme as that in the analysis of (see the table in Example 3: Uniform White Noise), the noise from which is built using linear filtering.

Example 4: Colored AR(3) Noise
Addressed topics
  • Processing noise
  • The relative importance of different details
  • The relative importance of D1 and A1
Further exploration
  • Compare the detail frequencies with those in the approximations.
  • Compare approximations A3, A4, and A5 with those shown in Example 3: Uniform White Noise.
  • Replace AR(3) with an ARMA (AutoRegressive Moving Average) model noise. For instance,

  • Study an ARIMA (Integrated ARMA) model noise. For instance,

  • Check that each detail can be modeled by an ARMA process.
