One-Dimensional Estimation Using the Graphical Interface

1. Start the Density Estimation 1-D Tool.

1. From the MATLAB prompt, type

   • wavemenu


   The Wavelet Toolbox Main Menu appears.

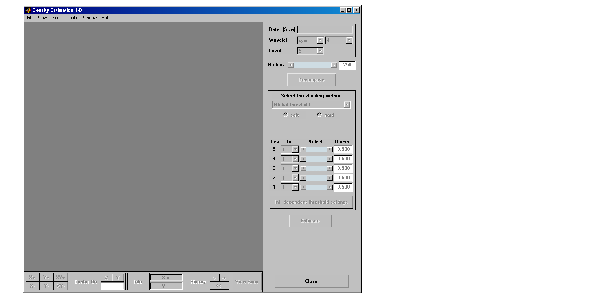

   Click the Density Estimation 1-D menu item. The discrete wavelet analysis tool for one-dimensional density estimation appears.



2. Load data.

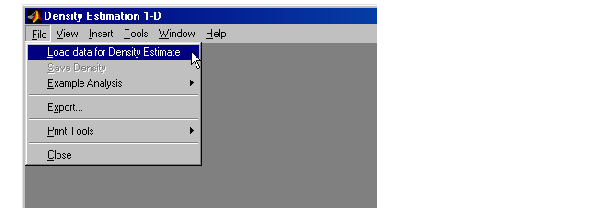

1. From the File menu, choose the LoadData for Density Estimate option.



   When the Load data for Density Estimate dialog box appears, select the demo MAT-file ex1cusp1.mat, which should reside in the MATLAB directory toolbox/wavelet/wavedemo. Click the OK button. The noisy cusp data is loaded into the Density Estimation 1-D tool.

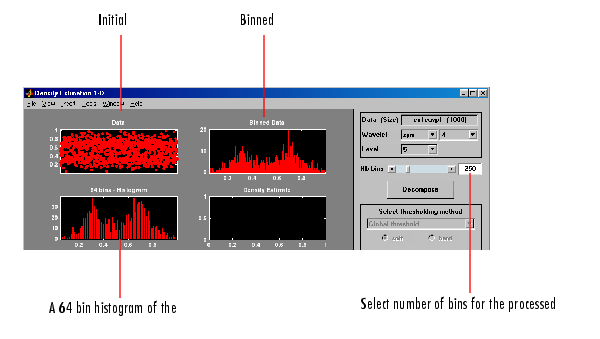

   The sample, a 64-bin histogram, and the processed data obtained after a binning are displayed. In this example, we'll accept the default value for the number of bins (250). The binned data will be processed by wavelet decomposition.

3. Perform a Wavelet Decomposition of the binned data.

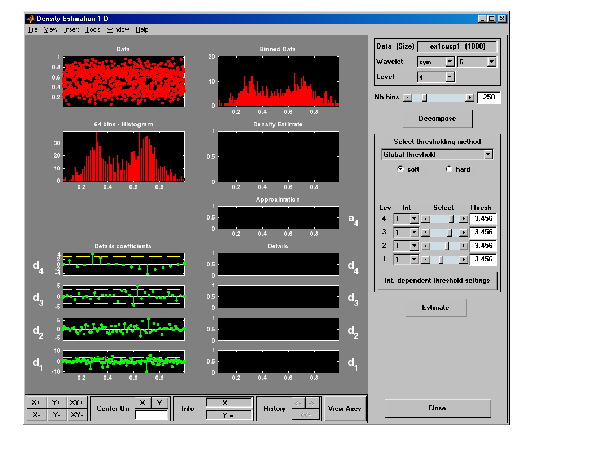

1. Select the sym6 wavelet from the Wavelet menu and select 4 from the Level menu, and then click the Decompose button. After a pause for computation, the tool displays the detail coefficients of the decomposition of the binned data.



4. Perform a density estimation.

1. We'll accept the defaults of global soft thresholding. The sliders located on the right of the window control the level dependent thresholds, indicated by yellow dotted lines running horizontally through the graphs on the left of the window.

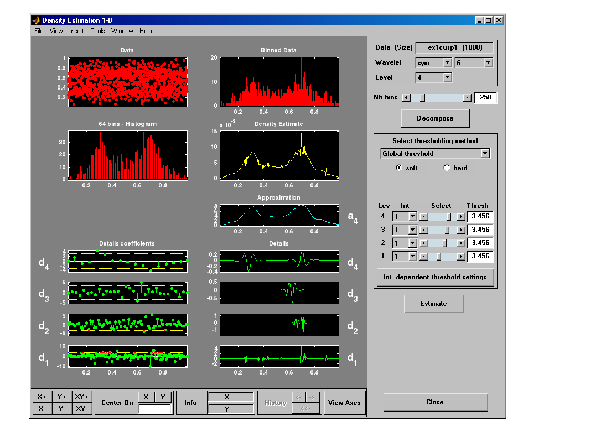

   Continue by clicking the Estimate button.



   You can see that the estimation process delivers a very irregular resulting density. The density estimate (in yellow) is the normalized sum of the signals located below it: the approximation a4 and the reconstructed details after coefficient thresholding.

5. Perform thresholding.

1. You can experiment with the various predefined thresholding strategies by selecting the appropriate options from the menu located on the right of the window or directly by dragging the yellow lines with the left mouse button. Let's try another estimation method.

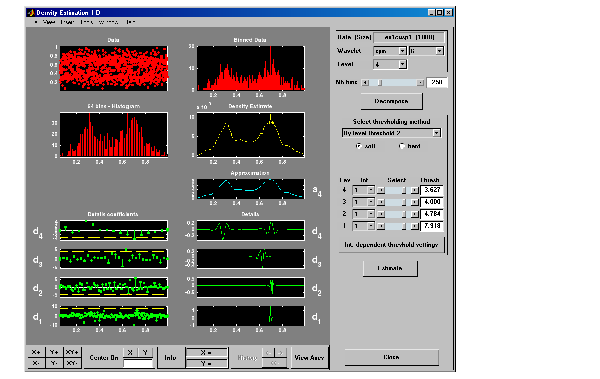

   From the menu Select thresholding method, select the item By level threshold 2. For more information about these methods, see Function Estimation: Density and Regression. Next, click the Estimate button.



   The estimated density is more satisfactory. It correctly identifies the smooth part of the density and the cusp at 0.7.
