centfrq

Wavelet center frequency

Syntax

• FREQ = centfrq('wname')
  FREQ = centfrq('wname',ITER)
  [FREQ,XVAL,RECFREQ] = centfrq('wname',ITER,'plot')


Description

FREQ = centfrq('wname') returns the center frequency in herz of the wavelet function, 'wname' (see wavefun for more information).

For FREQ = centfrq('wname',ITER), ITER is the number of iterations performed by the function wavefun, which is used to compute the wavelet.

[FREQ,XVAL,RECFREQ] = centfrq('wname',ITER,'plot') returns, in addition, the associated center frequency based approximation RECFREQ on the 2^ITER points grid XVAL and plots the wavelet function and RECFREQ.

Examples

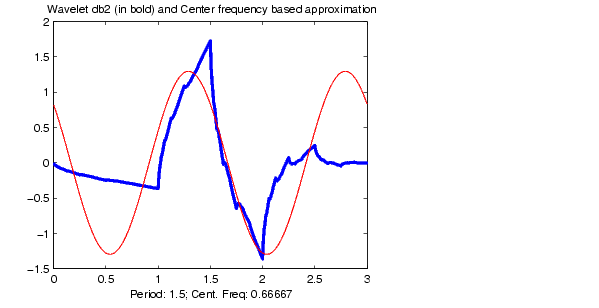

• % Example 1: a real wavelet
  wname = 'db2';

  % Compute the center frequency and display
  % the wavelet function and the associated
  % center frequency based approximation.
  iter = 8;
  cfreq = centfrq(wname,8,'plot')

  cfreq =
      0.6667

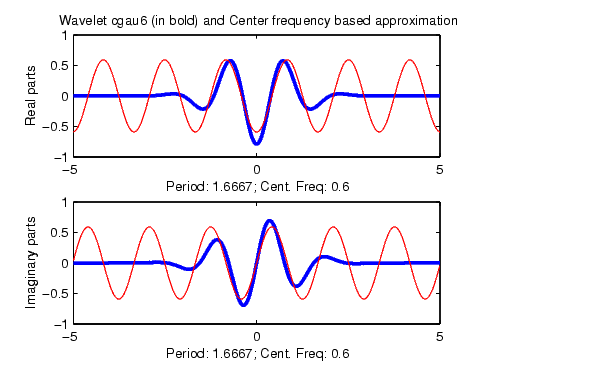

  % Example 2: a complex wavelet
  wname = 'cgau6';

  % Compute the center frequency and display
  % the wavelet function and the associated
  % center frequency based approximation.
  cfreq = centfrq(wname,8,'plot')

  cfreq =

      0.6000




See Also
scal2frq, wavefun
