General Menu Bar
At the top of most windows you find the same kind of structure. The menu bar of each figure in the Wavelet Toolbox is very similar to the menu bar of the default MATLAB figures. You can use many of the tools that are offered in the menus and associated toolbar of the standard MATLAB figures.

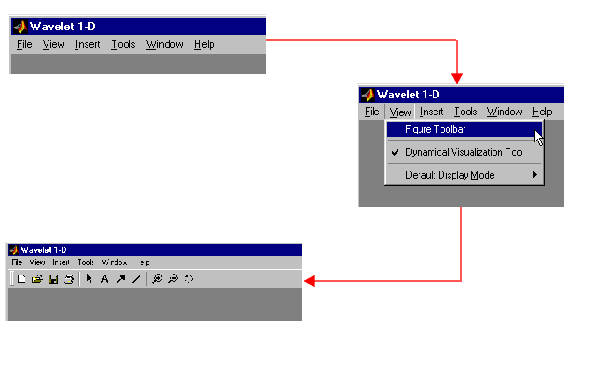

One of the main differences is the View menu, which depends on the current tool used.
View Dynamical Visualization Tool Option.

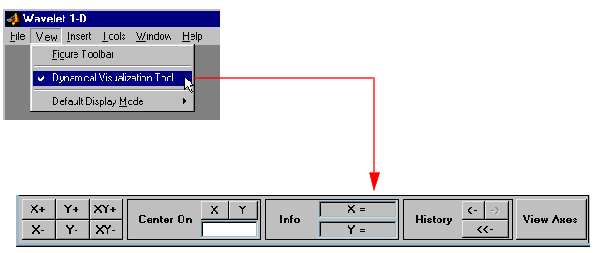

The View
Dynamical Visualization Tool option lets you enable or disable the Dynamical Visualization Tool located at the bottom of each window.
Before using Zoom In, Zoom Out, or Rotate 3D options (or the equivalent icons from the toolbar), you must disable the Dynamical Visualization Tool to avoid possible conflicts.

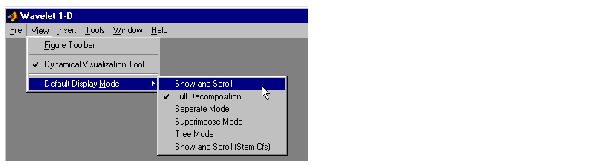

The Default Display Mode option is specific to the Wavelet 1-D tool and lets you set a default Display Mode for all the different analyses you perform inside the same tool.
File Menu Options

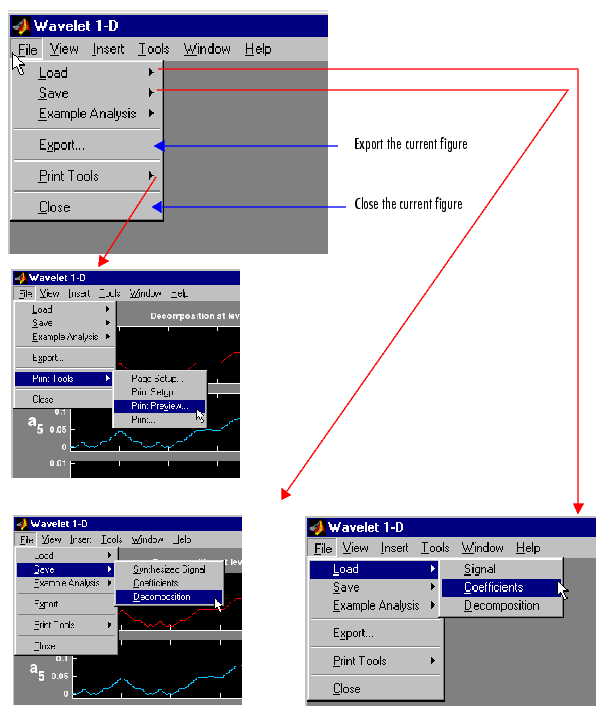

Depending on the tool you are using, some customized options are added to the File menu. For example, for the Wavelet 1-D tool, the following options are added:

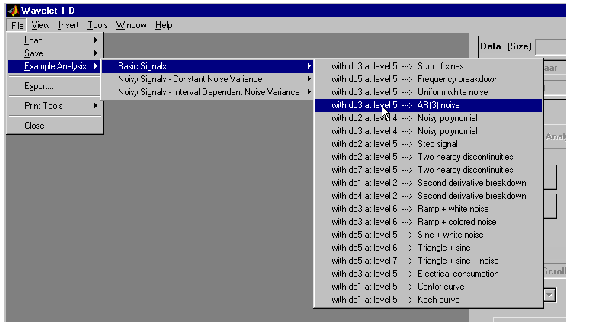

Many windows have a FileExample Analysis menu option, which allows you to select an analysis example using predefined parameters.
Here is an example of the Wavelet 1-D tool.

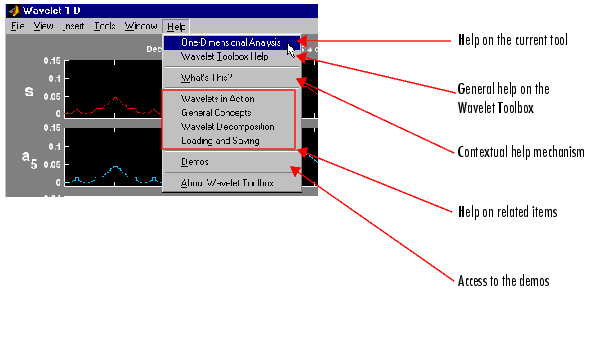

Help Menu Options
The help menu structure is very similar in all the figures, but many options are specific to the current tool in use.
