allnodes

Tree nodes

Syntax

• N = allnodes(T)
  N = allnodes(T,'deppos')


Description

allnodes is a tree management utility that returns one of two node descriptions: either indices, or depths and positions.

The nodes are numbered from left to right and from top to bottom. The root index is 0.

N = allnodes(T) returns the indices of all the nodes of the tree T in column vector N.

N = allnodes(T,'deppos') returns the depths and positions of all the nodes in matrix N.
N(i,1) is the depth and N(i,2) the position of the node i.

Examples

• % Create initial tree.
  ord = 2;
  t = ntree(ord,3);    % Binary tree of depth 3.
  t = nodejoin(t,5);
  t = nodejoin(t,4);

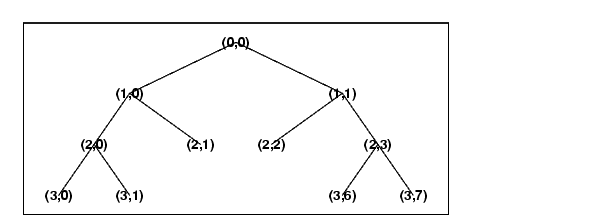

  plot(t)

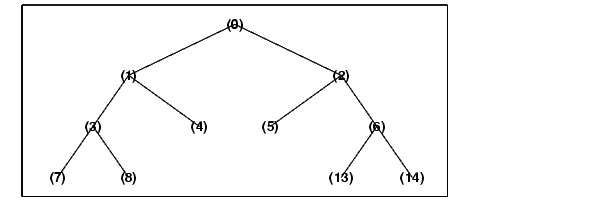

  % Change Node Label from Depth_Position to Index
  % (see the plot function).


  % List t nodes (index).
  aln_ind = allnodes(t)
  aln_ind =
      0
      1
      2
      3
      4
      5
      6
      7
      8
     13
     14
  % List t nodes (Depth_Position).
  aln_depo = allnodes(t,'deppos')
  aln_depo =
      0   0
      1   0
      1   1
      2   0
      2   1
      2   2
      2   3
      3   0
      3   1
      3   6
      3   7
