Unit Delay Enabled

Delay a signal one sample period, if the external enable signal is on

Library

Delays & Holds

Description

The Unit Delay Enabled block is a masked block that delays a signal by one sample period when the external enable signal E is on. While the enable is off, the block is disabled. It holds the current state at the same value and outputs that value. The enable signal is on when E is not 0, and off when E is 0.

You specify the block output for the first sampling period with the value Initial condition parameter.

The output data type is the same as the input u data type. The data type of the input u and the enable E can be any data type.

You input the sample time with the Sample time parameter. A setting of -1 means the Sample time is inherited.

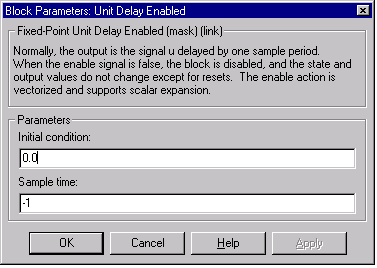

Parameters and Dialog Box

Initial condition
Initial condition.
Sample time
Sample time.

Characteristics

Input Port u
Any data type supported by the blockset
Input Port E
Any data type supported by the blockset
Output Port
Same as the input u
Direct Feedthrough
No
Scalar Expansion
Yes
