Saturation Dynamic (Fixed-Point Blockset)

Bound the range of the input

Library

Nonlinear

Description

The Saturation Dynamic block is a masked block that bounds the range of the input signal to upper and lower saturation values. The input signal outside of these limits saturates to one of the bounds where

The input below the lower limit is set to the lower limit.
The input above the upper limit is set to the upper limit.

The input for the upper limit is the up port, and the input for the lower limit is the lo port.

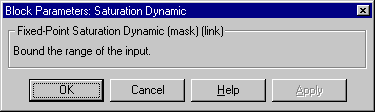

Parameters and Dialog Box

Characteristics

Input Port
Any data type supported by the blockset

Output Port
Same as the input

Direct Feedthrough
Yes

Scalar Expansion
Yes

Input Port	Any data type supported by the blockset
Output Port	Same as the input
Direct Feedthrough	Yes
Scalar Expansion	Yes
