Repeating Sequence Interpolated (Fixed-Point Blockset)

Output discrete-time sequence and repeat, interpolating between data points

Library

Sources

Description

The Repeating Sequence Interpolated block outputs a discrete-time sequence and then repeats it. Between data points, the block uses the method specified by the Look-Up Method parameter to determine the output.

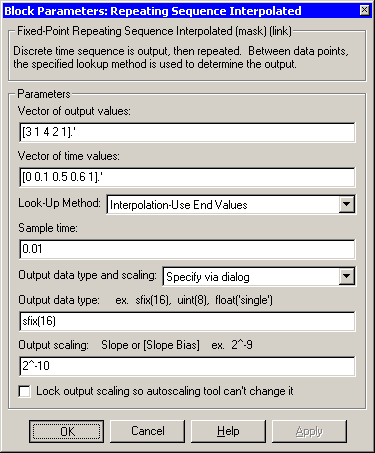

Parameters and Dialog Box

Vector of output values: Column vector containing output values of the discrete time sequence.
Vector of time values: Column vector containing time values. The time values must be a strictly increasing and the vector must have the same size as the vector of output values.
Look-Up Method: Specify the lookup method to determine the output between data points.
Sample time: Sample time.
Output data type and scaling: Specify the output data type and scaling via the dialog box, or by inheriting the data type and scaling by backpropagation.
Output data type: Any data type supported by the blockset.
Output scaling: Select the scaling method using the specified scaling or using the best precision.
Lock output scaling so autoscaling tool can't change it: If the box is selected, output scaling is locked.

Characteristics

Output Port
Any data type supported by the blockset

Scalar Expansion
Yes

Output Port	Any data type supported by the blockset
Scalar Expansion	Yes
