Fixed-Point Blockset
Rate Limiter Dynamic

Limit the rising and falling rates of the signal

Library

Nonlinear

Description

The Rate Limiter Dynamic block is a masked block that limits the rising and falling rates of the signal.

The external signal up sets the upper limit on the rising rate of the signal.

The external signal lo sets the lower limit on the falling rate of the signal.

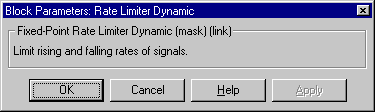

Parameters and Dialog Box

Characteristics

Input Ports
Any data type supported by the blockset
Output Port
Same data type as input
Direct Feedthrough
Yes
Scalar Expansion
Yes

See Also

Rate Limiter


  Rate Limiter Relational Operator
