MinMax Running Resettable (Fixed-Point Blockset)

Determine the minimum or maximum of a signal over time

Library

Math

Description

The MinMax Running Resettable block outputs the minimum or maximum of all past inputs u. You specify whether the block outputs the minimum or the maximum with the Function parameter.

The block can reset its state based on an external reset signal R. When the reset signal R is TRUE, the block resets the output to the value of the Initial condition parameter.

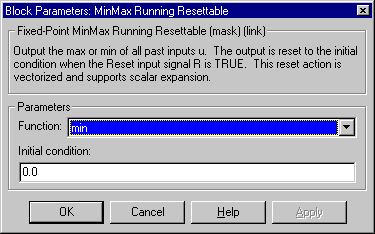

Parameters and Dialog Box

Function: Specify whether the block outputs the minimum or the maximum.
Initial condition: Initial condition.

Characteristics

Input Ports
Any data type supported by the blockset

Output Port
Same data type as the input

Direct Feedthrough
Yes

Scalar Expansion
Yes

Input Ports	Any data type supported by the blockset
Output Port	Same data type as the input
Direct Feedthrough	Yes
Scalar Expansion	Yes

See Also

MinMax

MinMax Multiply
