Fixed-Point Blockset
Filter Real Zero

Implement a discrete-time filter that has a real zero and no pole

Library

Filters

Description

The Filter Real Zero block implements a discrete-time filter that has a real zero and effectively has no pole.

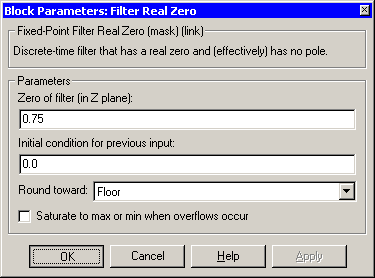

Parameters and Dialog Box

Zero of filter (in Z plane)
Set the zero of the filter.
Initial condition for previous input
Set the initial condition for the previous input.
Round toward
Rounding mode for the fixed-point output.
Saturate to max or min when overflows occur
If selected, fixed-point overflows saturate.

Characteristics

Input Ports
Any data type supported by the blockset--it must be a scalar
Output Port
Any data type supported by the blockset
Direct Feedthrough
Yes
Scalar Expansion
Of initial conditions
Vectorized
No

See Also

FIR


  Filter Lead or Lag FIR
