Filter Direct Form II Time Varying (Fixed-Point Blockset)

Implement a time varying Direct Form II realization of a filter

Library

Filters

Description

The Filter Direct Form II Time Varying block implements a Direct Form II realization of the specified filter. The block only supports single input-single output filters.

The block automatically selects the data types and scalings of the output, the coefficients, and any temporary variables.

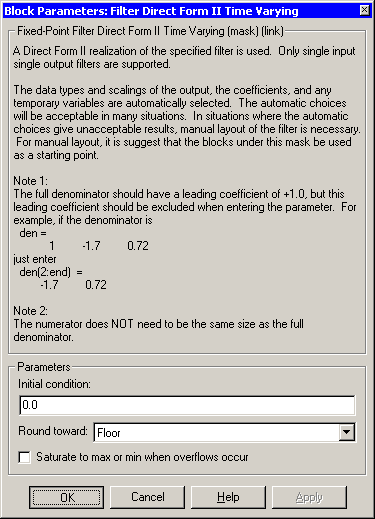

Parameters and Dialog Box

Initial condition: Set the initial condition.
Round toward: Rounding mode for the fixed-point output.
Saturate to max or min when overflows occur: If selected, fixed-point overflows saturate.

Characteristics

Input Port u
Any data type supported by the blockset--it must be a scalar

Input Port Num
Any data type supported by the blockset--it must be a scalar

Input Port Den No Lead
Any data type supported by the blockset--it must be a scalar

Output Port
Any data type supported by the blockset

Direct Feedthrough
Yes

Scalar Expansion
Of initial conditions

Vectorized
No

Input Port u	Any data type supported by the blockset--it must be a scalar
Input Port Num	Any data type supported by the blockset--it must be a scalar
Input Port Den No Lead	Any data type supported by the blockset--it must be a scalar
Output Port	Any data type supported by the blockset
Direct Feedthrough	Yes
Scalar Expansion	Of initial conditions
Vectorized	No

See Also

Filter Direct Form II, FIR

Filter Direct Form II Filter First Order
