Accumulator Resettable (Fixed-Point Blockset)

Fixed-Point Blockset

Accumulator Resettable

Compute a cumulative sum with external Boolean reset

Library

Calculus

Description

The Accumulator Resettable block computes a cumulative sum, based on the values of an external Boolean reset signal.

The block can reset its state based on an external reset signal R. The block has two input ports, one for the input signal u, and another for the reset signal R. When the reset is false at time n, the block adds the current value of the input signal u to the sum at time n-1. When the reset is true at time n, the block resets the sum to the value of the Initial condition for previous output parameter, and outputs the sum.

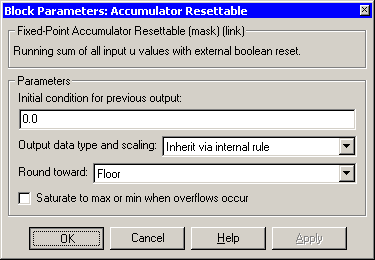

Parameters and Dialog Box

Initial condition for previous output: Set the initial condition for the previous output.
Output data type and scaling: Specify the output data type and scaling via the dialog box, or inherit the data type and scaling from the driving block or by backpropagation.
Round toward: Rounding mode for the fixed-point output.
Saturate to max or min when overflows occur: If selected, fixed-point overflows saturate.

Characteristics

Input Ports
Any data type supported by the blockset

Output Port
Same data type as the input

Direct Feedthrough
Of the input and reset source ports

Scalar Expansion
Of inputs and gain

Input Ports	Any data type supported by the blockset
Output Port	Same data type as the input
Direct Feedthrough	Of the input and reset source ports
Scalar Expansion	Of inputs and gain

See Also

Accumulator

Accumulator Accumulator Resettable Limited
