Right-Click Menus for MIMO and LTI Arrays

All of the menu options described in Right-Click Menus for SISO Systems hold when you have generated a response plot for a MIMO model or an LTI Array.

Note, however, that when you have a MIMO model or LTI array displayed, the right-click menus contain additional options: Axis Grouping and I/O selector. These features allow you to quickly reshuffle multiple plots in a single window.

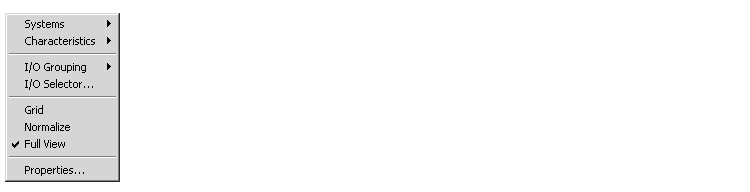

Note    Click on items in the right-click menu pictured below to get help contents.

.

Properties

I/O Grouping
