Right-Click Menus for MIMO Systems and LTI Arrays

All of the menu options described in Right-Click Menu for SISO Systems hold when you have imported a MIMO model or LTI Array containing multiple models.

Note, however, that when you have a MIMO model or LTI array displayed, the right-click menus contain additional options: I/O Grouping and I/O selector. These features allow you to quickly reshuffle multiple plots in a single LTI Viewer

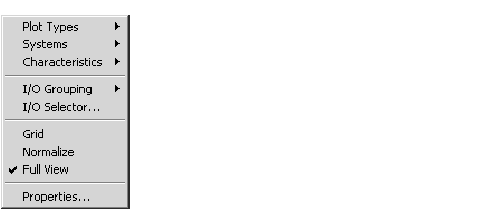

Note    Click on items in the right-click menu pictured below to get help contents.

.
