Viewing System Data

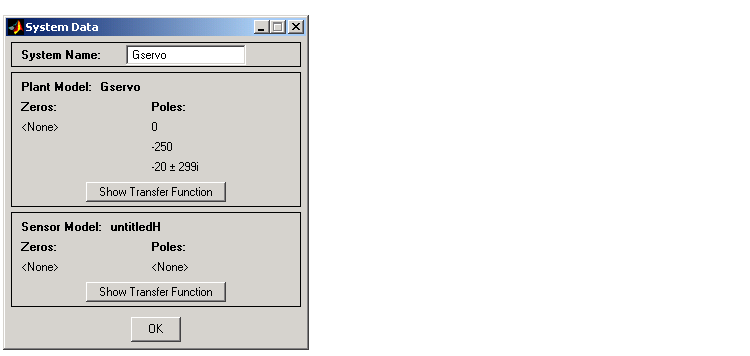

You can view data about your model by selecting System Data under the View menu.

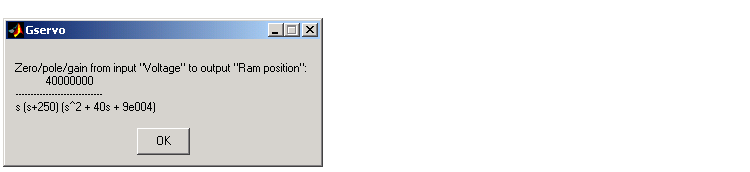

The System Data window displays the poles and zeros of your imported plant and sensor models. Press Show Transfer Function to see the associated transfer function. For example, this picture shows the Gservo plant's transfer function.

Type

• load ltiexamples


at the MATLAB prompt to load the Gservo plant model
