Table 3-2: Response Characteristic Options for Response Plots
Plot
|
Customizable Feature
|
Bode Diagram
|
Show peak response Show minimum stability margins Show all stability margins Unwrap phase (default is wrapped)
|
Bode Magnitude
|
Show peak response
|
Impulse
|
Show peak response Show settling time within xx% (specify the percentage)
|
Nichols Chart
|
Show peak response Show minimum stability margins Show all stability margins Unwrap phase (default is wrapped)
|
Nyquist Diagram
|
Show peak response Show minimum stability margins Show all stability margins
|
Pole/Zero Map
|
None
|
Sigma
|
Show peak response
|
Step
|

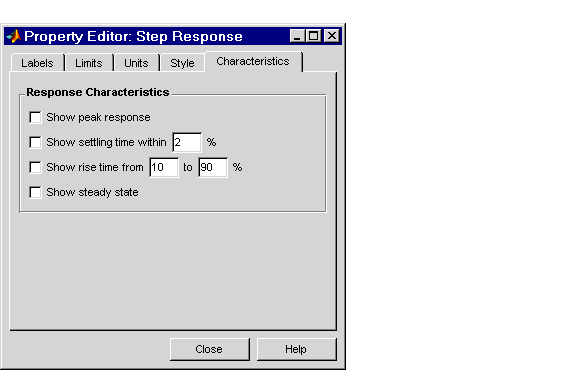

Show peak response Show settling time within xx% (specify the percentage) Show rise time from xx to yy% (specify the percentages) Show steady state
|
