Units Page

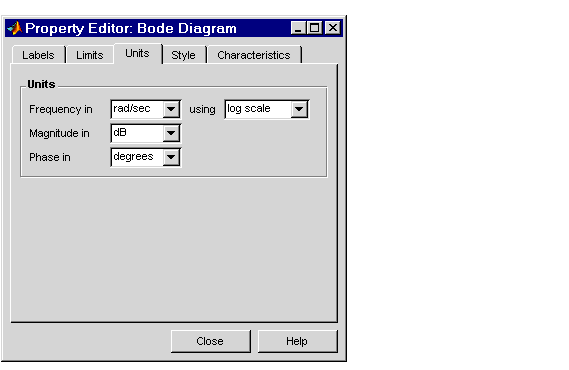

You can use the units page to change units in your response plot. The contents of this page depend on the response plot associated with the editor.

Note that for step and impulse responses, there are no alternate units available (only time and amplitude are possible in the toolbox). This table lists the options available for the other response objects. Use the menus to toggle between units.

Table 3-1: Optional Unit Conversions for Response Plots
Response Plot
Unit Conversions
Bode and
Bode Magnitude
Frequency in rad/sec or Hertz (Hz) using logarithmic or linear scale
Magnitude in decibels (dB) or the absolute value
Phase in degrees or radians
Impulse
None
Nichols Chart and Nyquist Diagram
Frequency in rad/sec or Hertz
Magnitude in decibels or the absolute value
Phase in degrees or radians
Pole/Zero Map
Frequency in rad/sec or Hertz
Singular Values
Frequency in rad/sec or Hertz using logarithmic or linear scale
Magnitude in decibels or the absolute value
Step
None
