Labels Page

Note    Click on the page tabs below to get help on pages in the Root Locus Property Editor.

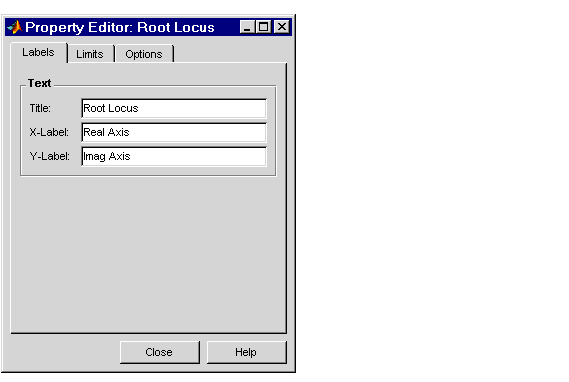

You can use the Label page to specify plot titles and axis labels. To specify a new label, type the string in the appropriate field. The root locus plot automatically updates.
