Options Page

Note    Click on the page tabs below to get help on pages in the Open-Loop Nichols Property Editor.

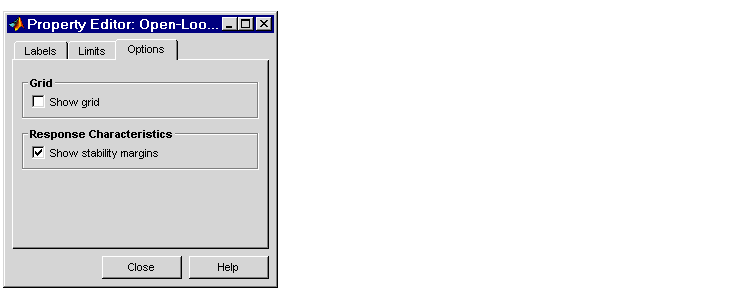

This figure shows the Options page for Bode diagrams.

The following options are available from this page:

• Grid -- Check Show grid to display grid lines.
• Response Characteristics -- Check Show stability margins to display the phase and gain margins on your Nichols plot.
