Right-Click Menus

The LTI Viewer provides a set of controls and options that you can access by right-clicking your mouse. Once you have imported a model into the LTI Viewer, the options you can select include

• Plot Type -- Change the plot type. Available types include step, impulse, Bode, Bode magnitude, Nichols, Nyquist, and singular values plots.
• Systems -- Select or clear any models that you included when you created the response plot.
• Characteristics -- Add information about the plot. The characteristics available change from plot to plot. For example, Bode plots have stability margins available, but step responses have rise time and steady-state values available.
• Grid -- Add grids to your plots.
• Normalize -- Scale responses to fit the view (only available for time-domain plot types).
• Full View -- Use automatic limits to make the entire curve visible.

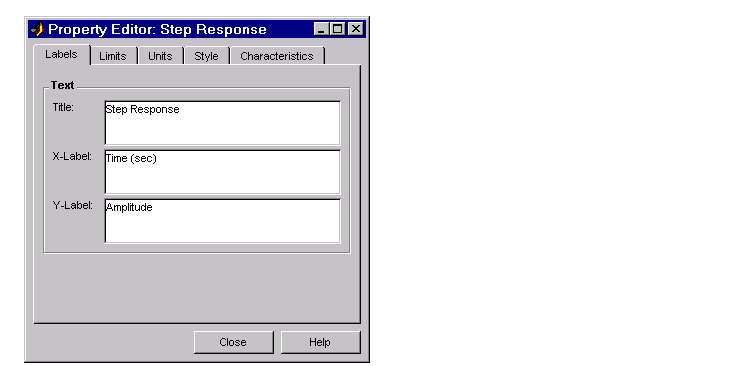

• Properties -- Open the Property Editor.



• You can use this editor to customize various attributes of your plot. See Customizing Plot Properties and Preferences online under "Customization" for a full description of the Property Editor.

  Alternatively, you can open the Property Editor by double-clicking in an empty region of the response plot.
