Default Transition to a Junction Example

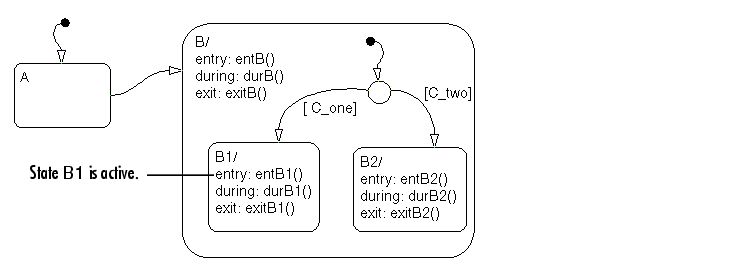

The following example shows the behavior of a default transition to a connective junction.

Initially the Stateflow diagram is asleep. State B.B1 is active. An event occurs and awakens the Stateflow diagram. Condition [C_two] is true. The event is processed from the root of the Stateflow diagram down through the hierarchy of the Stateflow diagram:

  1. State B checks to see if there is a valid transition as a result of any event. There is none.
  2. State B1 during actions (durB1()) execute and complete.

This sequence completes the execution of this Stateflow diagram associated with the occurrence of any event.
