Opening a Subchart

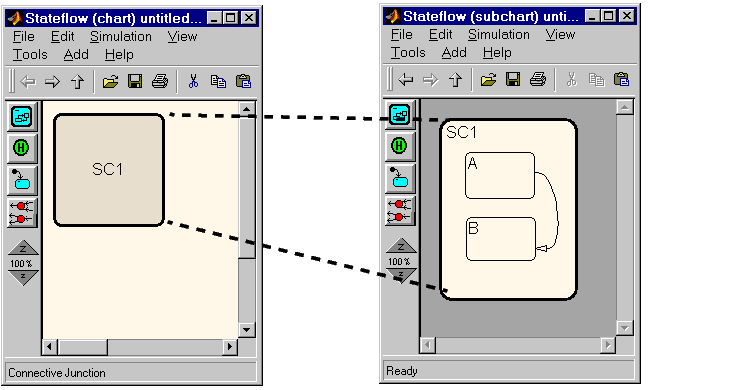

Opening a subchart allows you to view and change its contents. To open a subchart, double-click anywhere in the block that represents the subchart. Stateflow replaces the current contents of the editor window with the contents of the subchart.

A shaded border surrounds the contents of the subchart. Stateflow uses the border to display supertransitions.

To return to the previous view, select Back from the Stateflow shortcut menu, press the Esc key on your keyboard, or select the up or back arrow on the Stateflow toolbar.
