wintool

Open the Window Design and Analysis Tool (WinTool)

Syntax

• wintool
  wintool(obj1,obj2,...)


Description

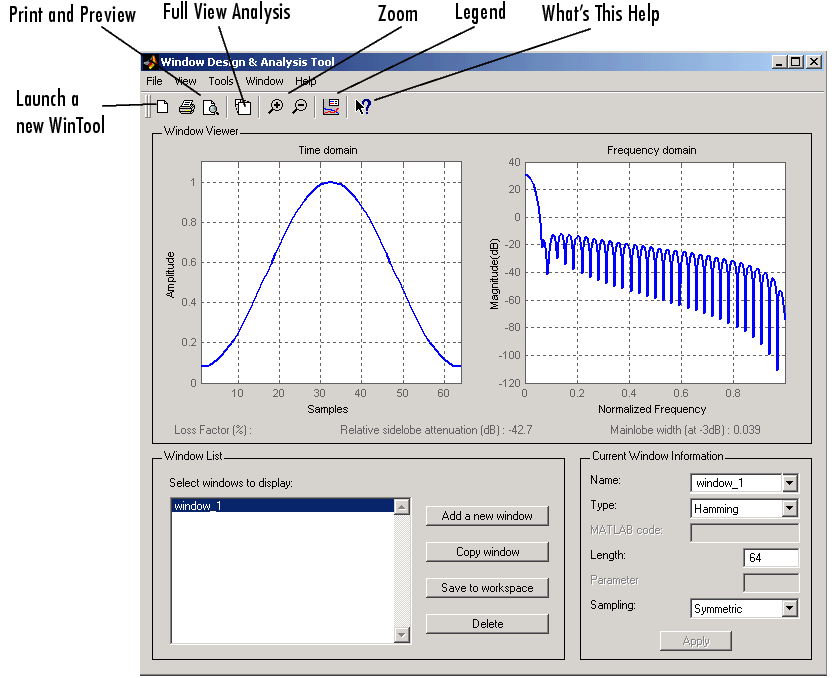

wintool opens WinTool, a graphical user interface (GUI) for designing and analyzing spectral windows. It opens with a default 64-point Hamming window.

wintool(obj1,obj2,...) opens WinTool with the sigwin window object(s) specified in obj1, obj2, etc.

Note    A related tool, wvtool, is available for displaying, annotating, or printing windows.

wintool has three panels:

• Window Viewer displays the time domain and frequency domain representations of the selected window(s). The currently active window is shown in bold. Three window measurements are shown below the plots.
• Leakage factor--ratio of power in the sidelobes to the total window power
• Relative sidelobe attenuation--difference in height from the mainlobe peak to the highest sidelobe peak
• Mainlobe width (-3dB)--width of the mainlobe at 3 dB below the mainlobe peak
• Window List lists the windows available for display in the Window Viewer. Highlight one or more windows to display them. The Window List buttons are:
• Add a new window--adds a default Hamming window with length 64 and symmetric sampling. You can change the information for this window by applying changes made in the Current Window Information panel.
• Copy window--copies the selected window(s).
• Save to workspace--saves the selected window(s) as vector(s) to the MATLAB workspace. The name of the window in wintool is used as the vector name.
• Delete--removes the selected window(s) from the window list.
• Current Window Information displays information about the currently active window. The active window name is shown in the Name field. To make another window active, select its name from the Name menu.

Window Parameters

Each window is defined by the parameters in the Current Window Information panel. You can change the current window's characteristics by changing its parameters and clicking Apply. The parameters of the current window are

• Name--name of the window. The name is used for the legend in the Window Viewer, in the Window List, and for the vector saved to the workspace. You can either select a name from the menu or type the desired name in the edit box.
• Type--algorithm for the window. Select the type from the menu. All windows in the Signal Processing Toolbox are available.
• MATLAB code--any valid MATLAB expression that returns a vector defining the window if Type = User Defined.
• Length--number of samples.
• Parameter--additional parameter for windows that require it, such as Chebyshev, which requires you to specify the sidelobe attenuation. Note that the title "Parameter" changes to the appropriate parameter name.
• Sampling--type of sampling to use for generalized cosine windows (Hamming, Hann, and Blackman)--Periodic or Symmetric. Periodic computes a length n+1 window and returns the first n points, and Symmetric computes and returns the n points specified in Length.

WinTool Menus

In addition to the usual menus items, wintool contains these wintool-specific menu commands:

File menu:

• Export--exports window vectors or sigwin window objects to the MATLAB workspace, a MAT-file or a text file.
• Full View Analysis--copies the windows shown in both plots to a separate wvtool figure window. This is useful for printing and annotating. This option is also available with the Full View Analysis toolbar button.

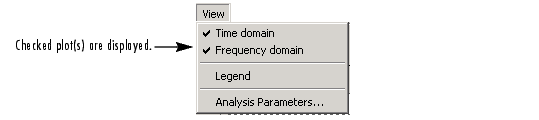

View menu:

• Time domain--check to show the time domain plot in the Window Viewer panel.
• Frequency domain--check to show the frequency domain plot in the Window Viewer panel.



• Legend--toggles the window name legend on and off. This option is also available with the Legend toolbar button.
• Analysis Parameters--controls the response plot parameters, including Number of points, Range, x- and y-axis units, and sampling frequency.

• You can also access the Analysis Parameters by right-clicking on the x-axis label of a plot in the Window Viewer panel. The X-axis units for the time domain plot depend on the selected Sampling Frequency units.



  Frequency Domain	Time Domain
  Hz	sec
  kHz	ms
  MHz	µs
  GHz	picosec

See Also

window, wvtool
