Syntax
Description
strips(x)
plots vector x in horizontal strips of length 250. If x is a matrix, strips(x) plots each column of x. The left-most column (column 1) is the top horizontal strip.
strips(x,n)
plots vector x in strips that are each n samples long.
strips(x,sd,fs)
plots vector x in strips of duration sd seconds, given a sampling frequency of fs samples per second.
strips(x,sd,fs,scale)
scales the vertical axes.
If x is a matrix, strips(x,n), strips(x,sd,fs), and strips(x,sd,fs,scale) plot the different columns of x on the same strip plot.
strips ignores the imaginary part of complex-valued x.
Examples

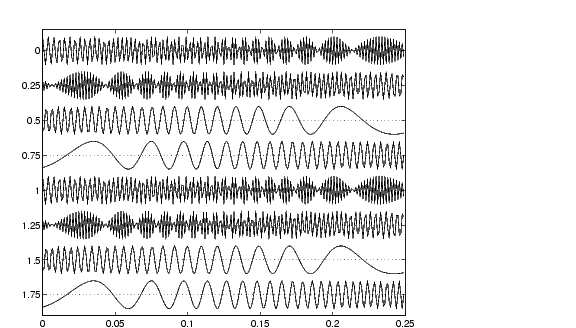

Plot two seconds of a frequency modulated sinusoid in 0.25 second strips:
fs=1000; % Sampling frequency t=0:1/fs:2; % Time vector x=vco(sin(2*pi*t),[10 490],fs); % FM waveform strips(x,0.25,fs)
