FFT-Based Time-Frequency Analysis
The Signal Processing Toolbox provides a function, specgram
, that returns the time-dependent Fourier transform for a sequence, or displays this information as a spectrogram. The Toolbox also inclues a spectrogram demo. The time-dependent Fourier transform is the discrete-time Fourier transform for a sequence, computed using a sliding window. This form of the Fourier transform, also known as the short-time Fourier transform (STFT), has numerous applications in speech, sonar, and radar processing. The spectrogram of a sequence is the magnitude of the time-dependent Fourier transform versus time.

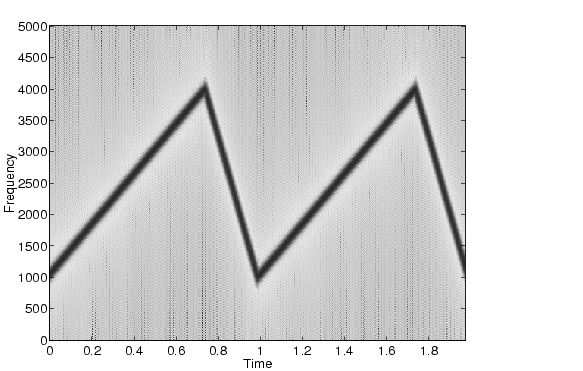

To display the spectrogram of a linear FM signal:
fs = 10000; t = 0:1/fs:2; x = vco(sawtooth(2*
pi*
t,.75),[0.1 0.4]*
fs,fs); specgram(x,512,fs,kaiser(256,5),220)
Note that the spectrogram display is an image, not a plot.
