Signal Processing Toolbox

Opening the Signal Browser

To open the Signal Browser from SPTool:

1. Select one or more signals in the Signals list in SPTool
2. Press the View button under the Signals list

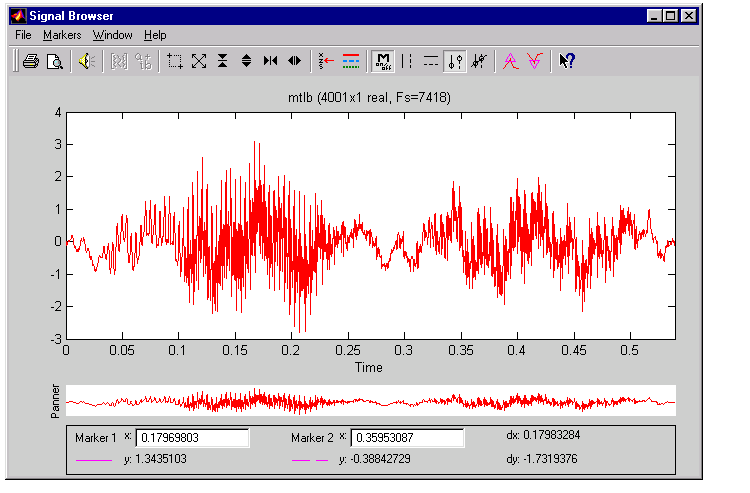

The Signal Browser has the following components:

• A display region for analyzing signals, including markers for measuring, comparing, or playing signals
•  A "panner" that displays the entire signal length, highlighting the portion currently active in the display region
• A marker measurements area
• A toolbar with buttons for convenient access to frequently used functions



  	Print and print preview
  	Play an audio signal
  	Display array and complex signals
  	Zoom the signal in and out
  	Select one of several loaded signals
  	Set the display color and line style of a signal
  	Toggle the markers on and off
  	Set marker types (See Making Signal Measurements: Using Markers)
  	Turn on the What's This help
