Opening the Filter Viewer

You can open the Filter Viewer from SPTool by:

  1. Selecting one or more filters in the Filters list in SPTool
  2. Pressing the View button under the Filters list

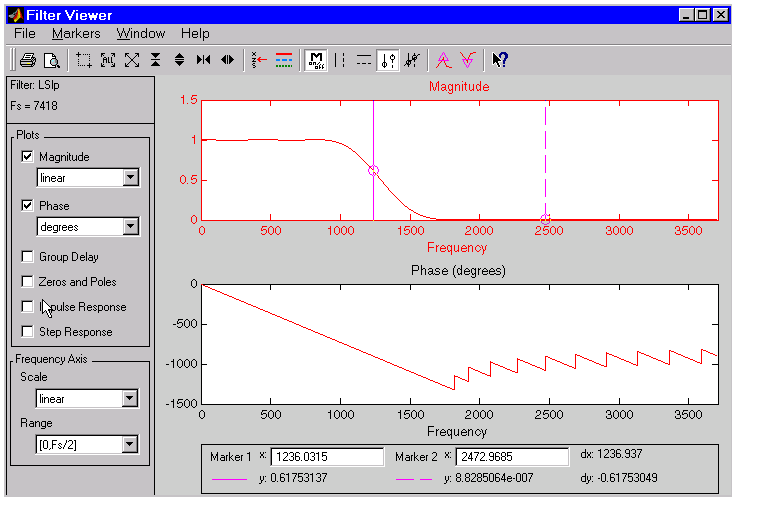

When you first open the Filter Viewer, it displays the default plot configuration for the selected filter(s).

The filter's magnitude and phase plots are displayed by default. In addition, the frequency is displayed with a linear scale on the interval [0,Fs/2].

The Filter Viewer has the following components:
