Image Processing Toolbox

Deblurring with a Regularized Filter

Use the deconvreg function to deblur an image using a regularized filter. A regularized filter can be used effectively when limited information is known about the additive noise.

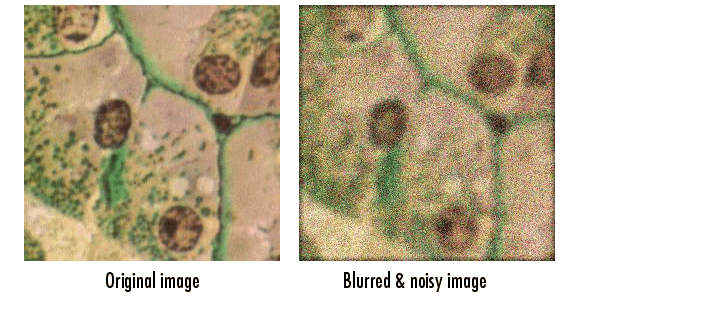

To illustrate, this example simulates a blurred image by convolving a Gaussian filter PSF with an image (using imfilter). Additive noise in the image is simulated by adding Gaussian noise of variance V to the blurred image (using imnoise).

• I = imread('tissue1.tif');
  I = I(350+[1:256],1:256,:);
  figure;imshow(I);title('Original Image');
  % Create the PSF
  PSF = fspecial('gaussian',11,5);

  % Blur the image
  Blurred = imfilter(I,PSF,'conv');

  % Add noise
  V = .02;
  BlurredNoisy = imnoise(Blurred,'gaussian',0,V);
  figure;imshow(BlurredNoisy);title('Blurred & Noisy');




Use deconvreg to deblur the image, specifying the PSF used to create the blur, and the noise-to-signal power ratio, NP.

• NP = V*prod(size(I)); % noise power
  [reg1 LAGRA] = deconvreg(BlurredNoisy,PSF,NP);

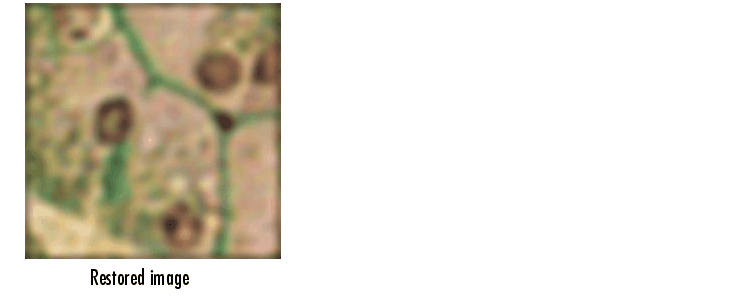

  figure,imshow(reg1),title('Restored with NP');




Refining the Result

You can affect the deconvolution results by providing values for the optional arguments supported by the deconvreg function. Using these arguments you can specify the noise power value, the range over which deconvreg should iterate as it converges on the optimal solution, and the regularization operator to constrain the deconvolution. To see the impact of these optional arguments, view the Image Processing Toolbox Deblurring Demos.
