Fixed-Point Blockset
Saturation Dynamic

Bound the range of the input

Library

Nonlinear

Description

The Saturation Dynamic block is a masked block that bounds the range of the input signal to upper and lower saturation values. The input signal outside of these limits saturates to one of the bounds where

The input for the upper limit is the up port, and the input for the lower limit is the lo port.

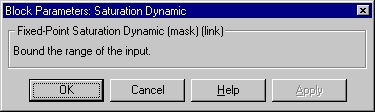

Parameters and Dialog Box

Characteristics

Input Port
Any data type supported by the blockset
Output Port
Same as the input
Direct Feedthrough
Yes
Scalar Expansion
Yes

See Also

Saturation


  Saturation Scaling Strip
