Interval Test Dynamic (Fixed-Point Blockset)

Determine if a signal is in a specified interval

Library

Logic & Comparison

Description

The Interval Test Dynamic block outputs TRUE if the input is between the values of the external signals up and lo. The block outputs FALSE if the input is outside those values. The output of the block when the input is equal to the signal up or the signal lo is determined by whether the boxes next to Interval closed on left and Interval closed on right are selected in the dialog box.

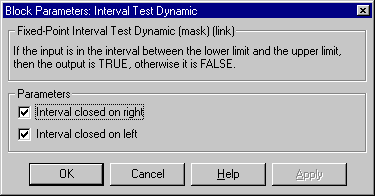

Parameters and Dialog Box

Interval closed on right: When the box is selected, the Upper limit is included in the interval for which the block outputs TRUE.
Interval closed on left: When the box is selected, the Lower limit is included in the interval for which the block outputs TRUE.

Characteristics

Input Ports
Any data type supported by the blockset

Output Port
Same data type as output

Direct Feedthrough
Yes

Scalar Expansion
Yes

Input Ports	Any data type supported by the blockset
Output Port	Same data type as output
Direct Feedthrough	Yes
Scalar Expansion	Yes

See Also

Interval Test

Interval Test Logical Operator
