Detect Increase

Detect an increase in a signal's value

Library

Edge Detect

Description

The Detect Increase block is a masked block that determines if an input is strictly greater than its previous value where

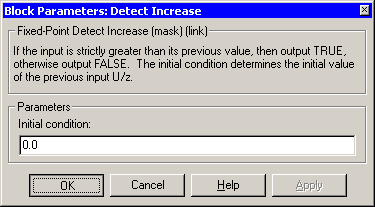

Parameters and Dialog Box

Initial condition
Set the initial condition for the previous input U/z.

Characteristics

Input Port
Any data type supported by the blockset
Output Port
An 8-bit unsigned integer
Direct Feedthrough
Yes
Scalar Expansion
Yes
Vectorized
Yes

See Also

Detect Change, Detect Decrease, Detect Fall Negative, Detect Fall Nonpositive, Detect Rise Nonnegative, Detect Rise Positive
