Dead Zone Dynamic (Fixed-Point Blockset)

Set inputs within the bounds to zero

Library

Nonlinear

Description

The Dead Zone Dynamic block is a masked block that dynamically bounds the range of the input signal, providing a region of zero output. The bounds change according to the upper and lower limit input signals where

The input within the bounds is set to zero.
The input below the lower limit is shifted down by the lower limit.
The input above the upper limit is shifted down by the upper limit.

The input for the upper limit is the up port, and the input for the lower limit is the lo port.

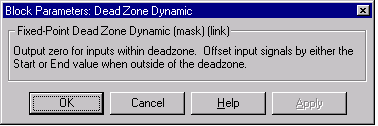

Parameters and Dialog Box

Characteristics

Input Port
Any data type supported by the blockset

Output Port
Same as the input

Direct Feedthrough
Yes

Scalar Expansion
Yes

Input Port	Any data type supported by the blockset
Output Port	Same as the input
Direct Feedthrough	Yes
Scalar Expansion	Yes
